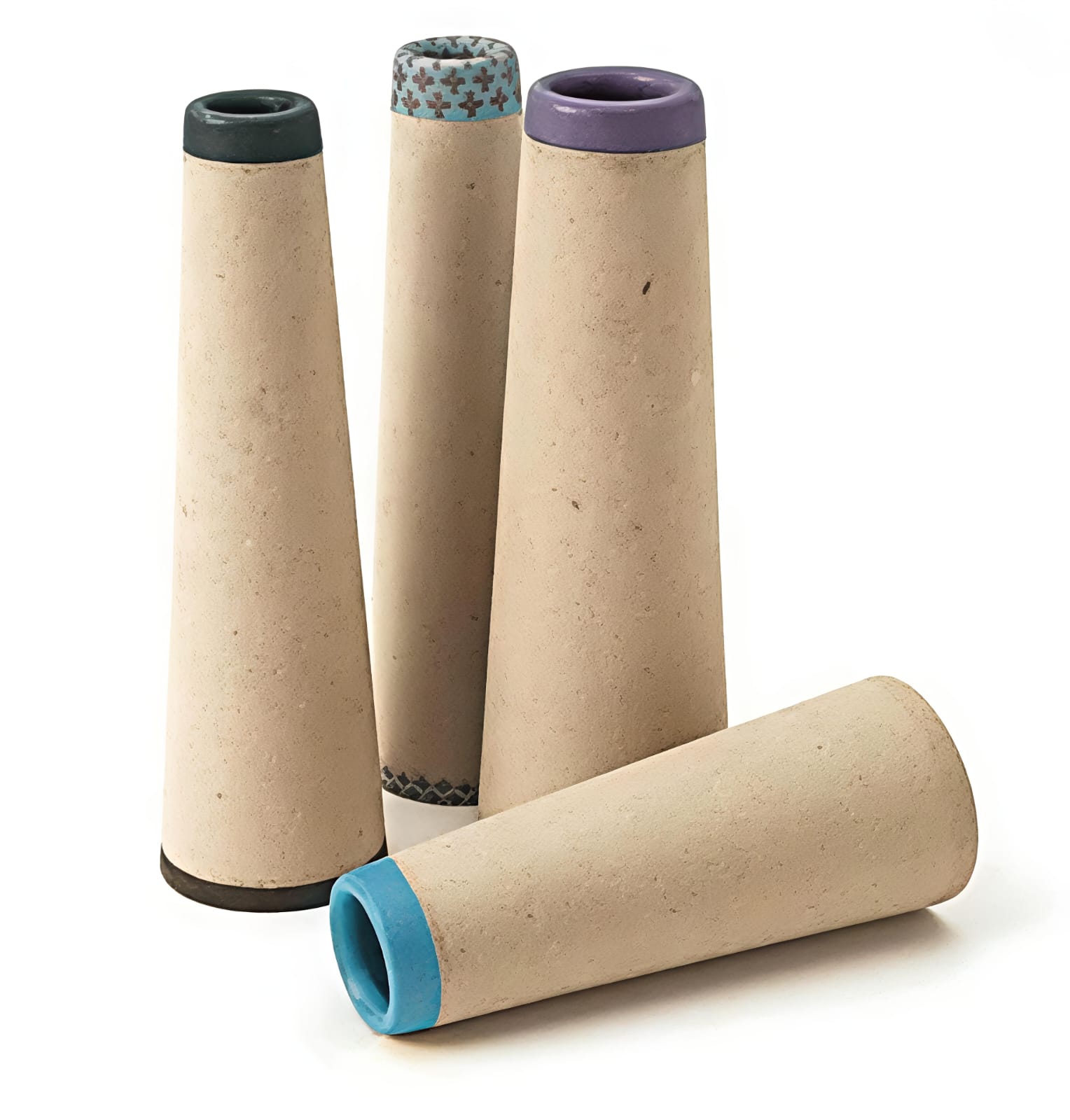

Automatic Paper Cone Machinery

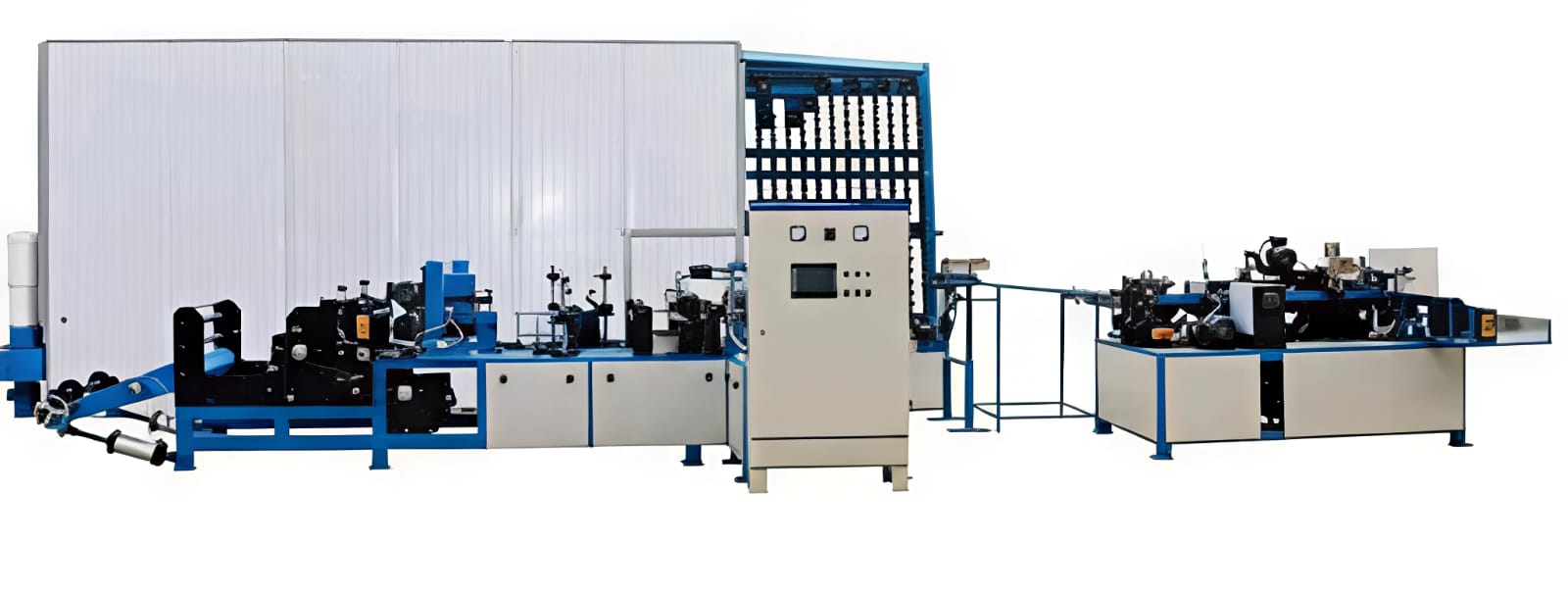

High-performance, PLC-controlled machines with international-grade components designed for the Indian market.
Cone Winding Machine

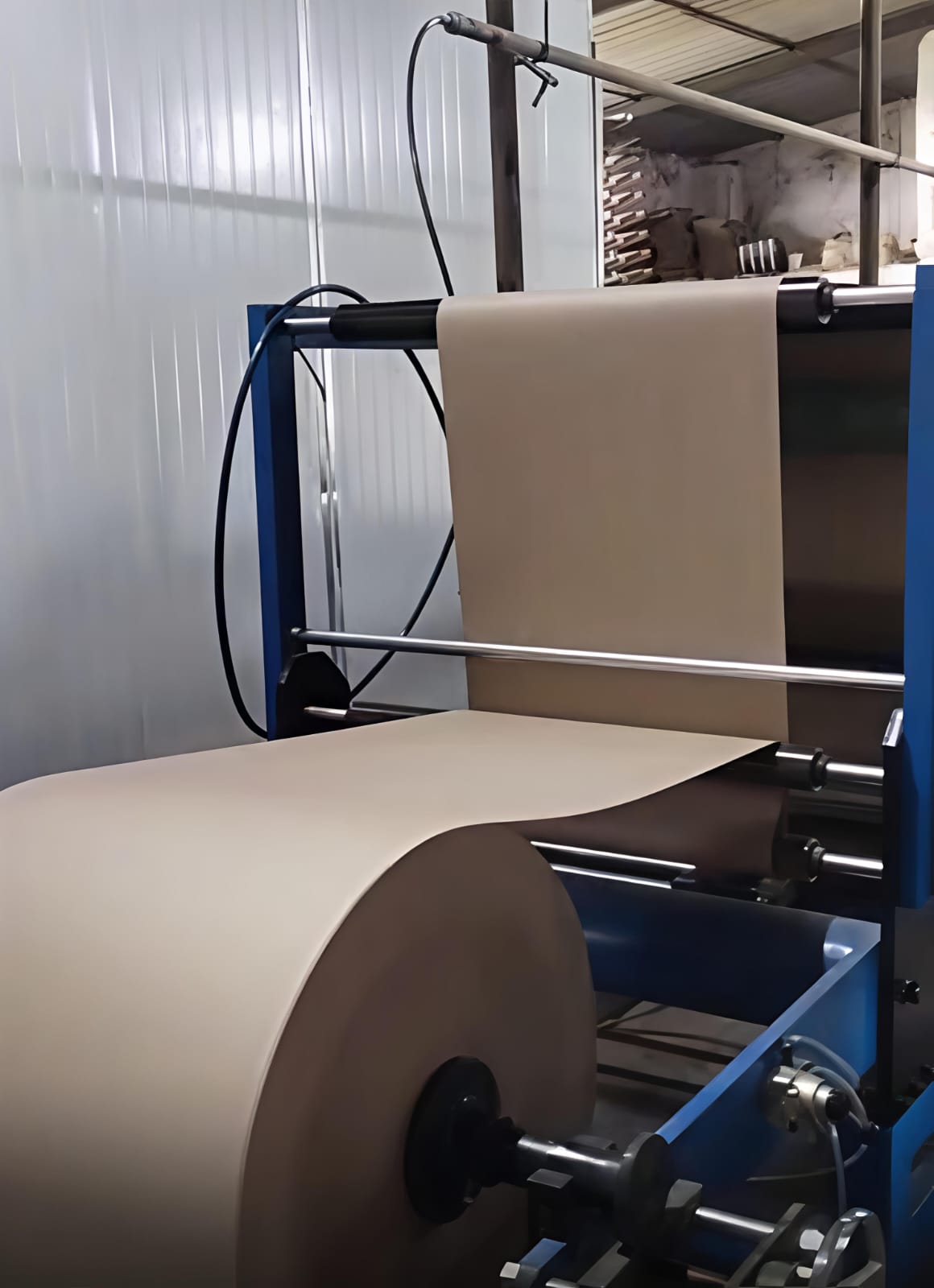

The machine is used for cone winding work. Paper reel is loaded on the machine, first printing is done on paper, then paper edge will be ground, waste paper is cut out, glue is applied on paper and then paper will be cut into cone pattern and winding work finishes on winding spindle.
Key Features
- Controlled by PLC, setting done on touch screen — clear and simple
- Paper cutting knives driven by cylinders — easy cutting and adjustment

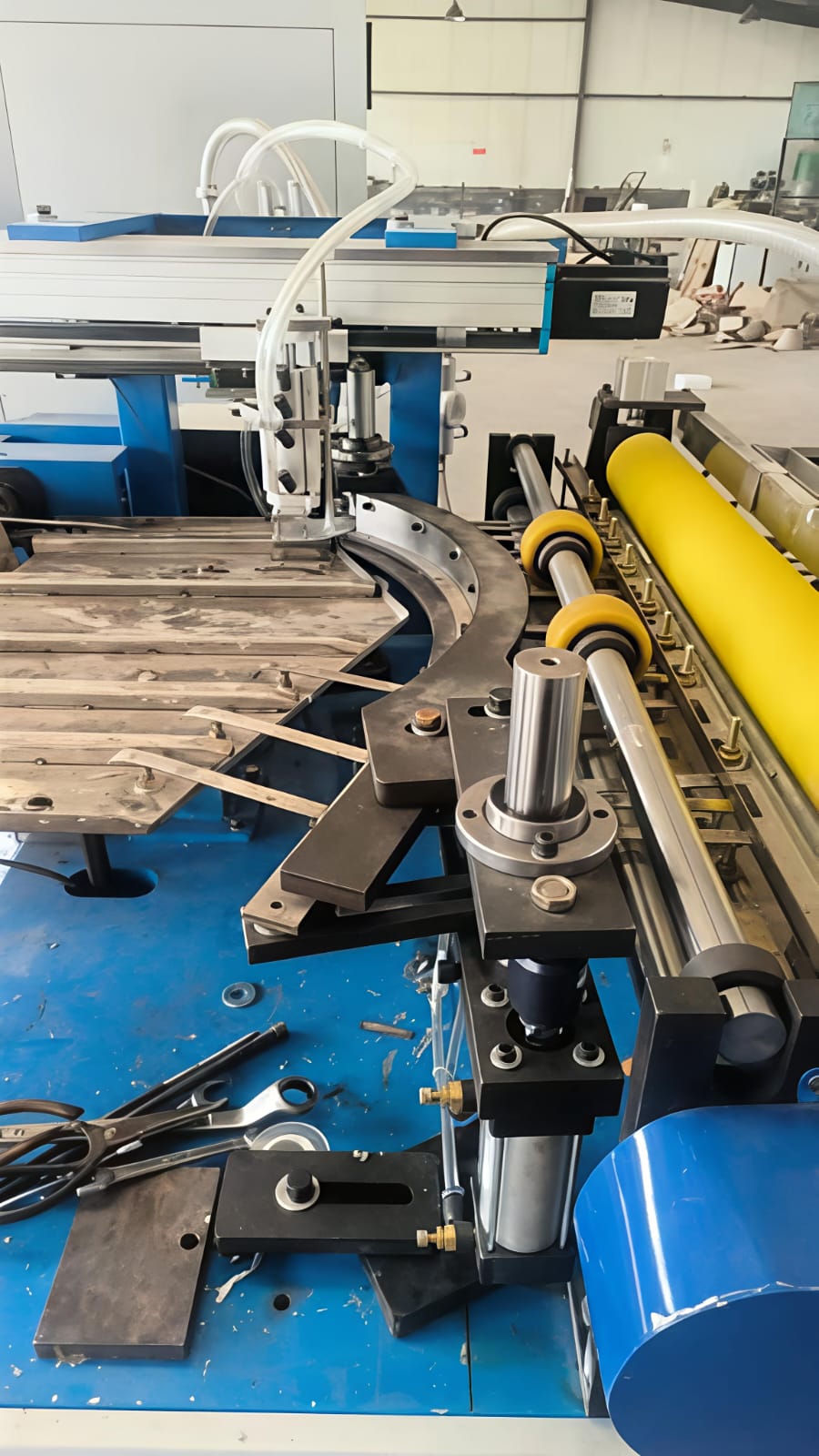

- Precision linear module driven with servo drive for paper patterns
- Japan Orion vacuum pump for spindle suction — long service time
- Cone winding driven by servomotor — high precision, less stoppage

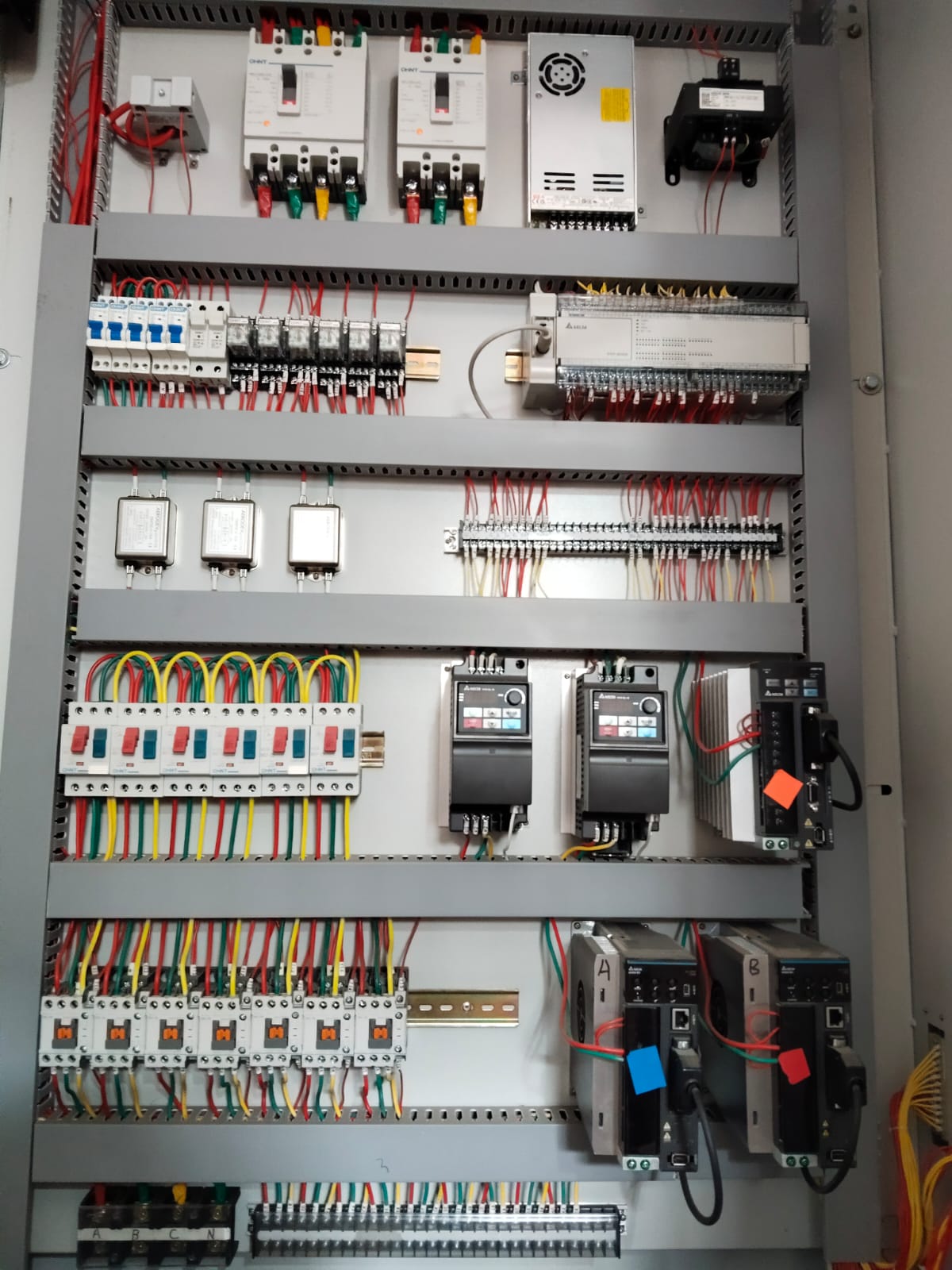

- Taiwan Airtac cylinders + Taiwan Delta PLC & servo motors
- Max paper width: 815mm (upgraded from 740mm)
Technical Specifications
| Power | 12.5KW / 380V / 50HZ / 3 Phases |
|---|---|
| Speed | 30-60 pieces/minute |
| Cone Size | 4deg.20, 5deg.57, 3deg30 |
| Paper | 300-500 gsm paper reel |
| Glue | PVA glue, Starch glue |
| Compressed Air | 1.5m³/min, 0.8MPa |
| Operator | 1-2 Persons/shift |
| Machine Size | 6 x 1.5 x 2 meters |
Cone Dryer

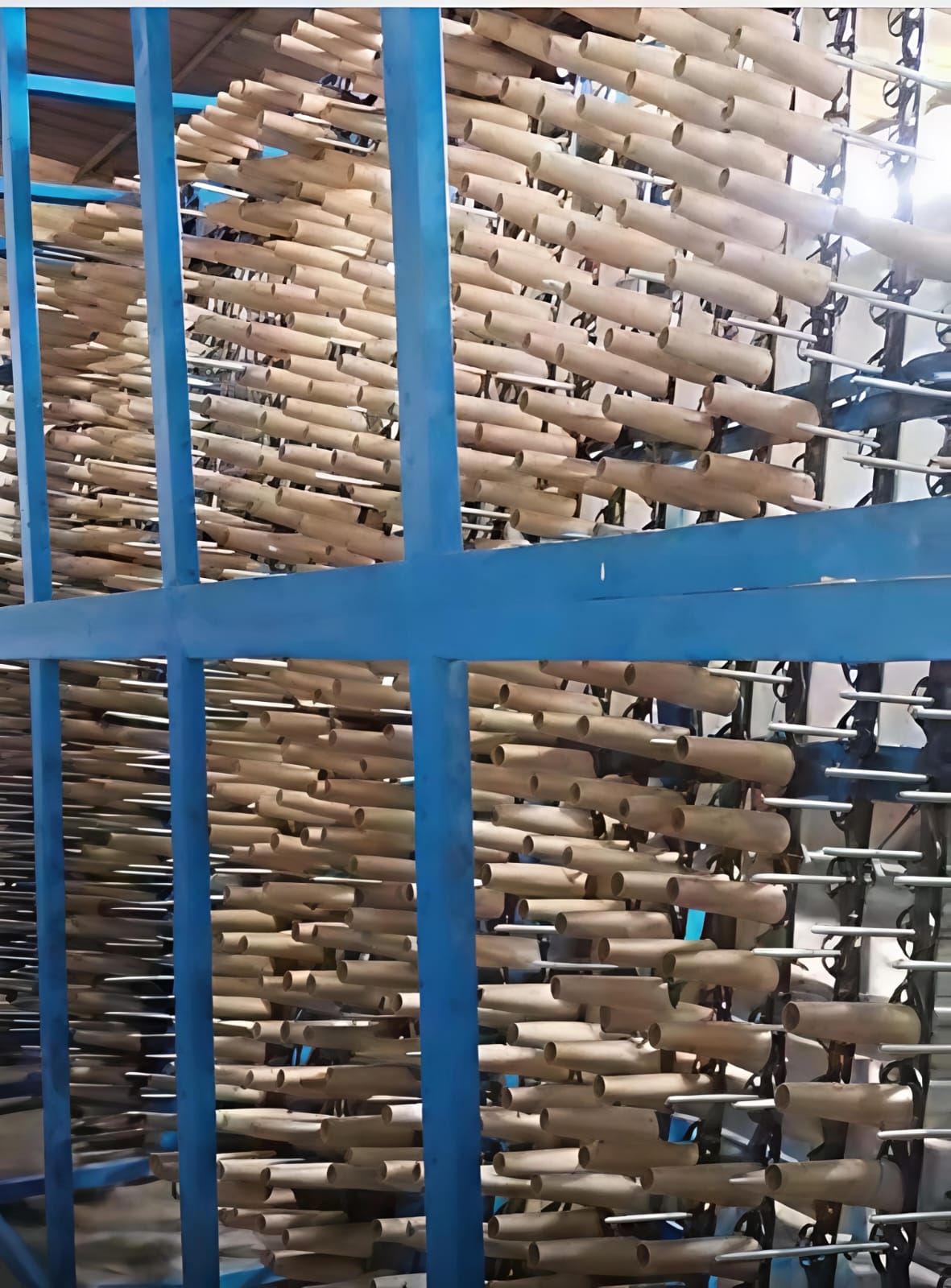

The function of cone dryer is to make the wet cones made by winding machine dry by heat. Heating source client can choose electricity or coal or gas. Most Indian clients choose wood/coal burning dryer. Big size dryer with capacity of 1400 cones suitable for Indian market.
Key Features
- Multiple heat source options: electricity, coal, gas, or wood
- Large capacity: 1400+ cones per batch
- Customized big-size design for Indian market demands
- Uniform heat distribution for consistent drying
- Wood/coal burning option preferred by Indian clients
Technical Specifications
| Size | 8 x 1.2 x 3.2 meters |
|---|---|
| Drive Power | 2.8 kW |
| Capacity | 1400+ cones |
| Heating Coil | 32 kW (Optional: gas/coal) |
| Speed | 30-60 pieces/minute |
| Heat Supply | Coal / Wood |
Cone Finishing Machine

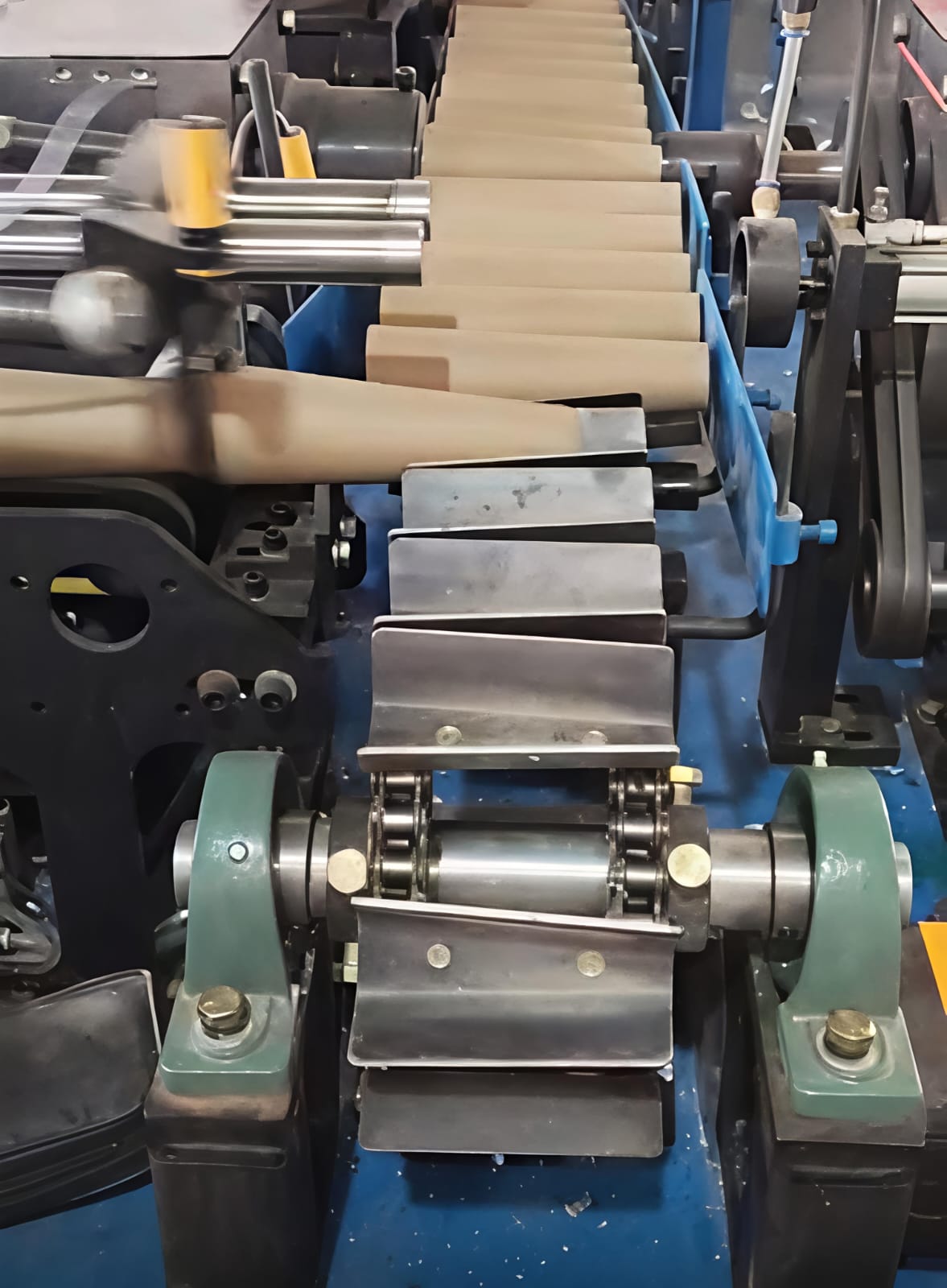

This machine is used for the finishing work of paper cone. Unfinished dry cones are put on the feeding table, then will be automatically fed to this machine. Nose curling, surface rough finishing (sanding) and V cutting work is done on this machine. Then cones producing work finish.
Key Features
- Automatic feeding from table to machine
- Nose curling for perfect cone tip shape
- Surface sanding for smooth finish
- V-cutting for precise cone geometry
- Single operator per shift — minimal labor cost
Technical Specifications
| Power | 8KW / 380V / 50HZ / 3 Phases |
|---|---|
| Speed | 30-60 pieces/minute |
| Cone Size | 4deg.20, 5deg.57, 3deg30 |
| Compressed Air | 1.5m³/min, 0.8MPa |
| Operator | 1 Person/shift |
| Working Space | 2.2 x 2 x 1.4 meters |
